5050 RGBW LED CHIP

RGBW LED provides the leading Chip on Top SMD type of LED technology for high efficiency solid-state

lighting solutions. It offers excellent uniformity, flexibility and cost efficiency along with compact size and wide range

of color selections. All components are produced by packing high-performance LED chips and silicon resin with proprietary phosphors.

. Ideal for LED lighting application to avoid multi-shadows
. Higher heat conductivity for better thermal management
. Provide variable and innovative array LED layout designs and combinations
. Reduce the initial development cost and time
. High lumen-performance per dollar cost
. Lead free reflow solder compatible with RoHS compliant

2. Applications
. Solid State Lighting
. Indoor/Outdoor/Decoration
. Signal Light Engine
. Commercial Display
. Industrial Light Engine

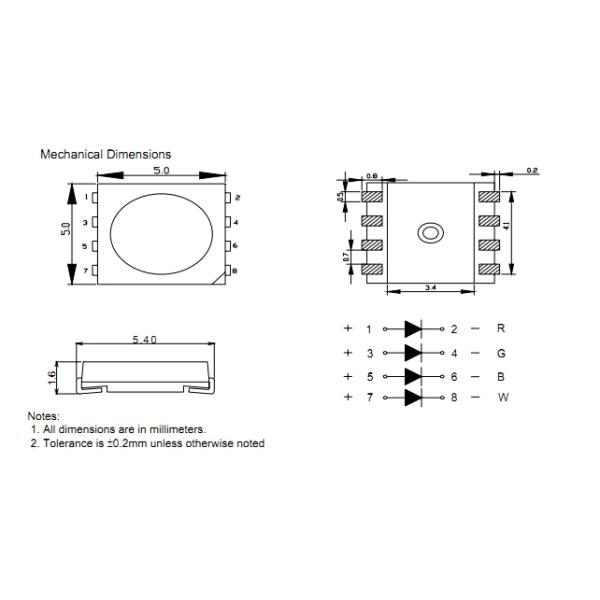

3. Dimensions and Materials
. Dimensions: 5.5 mm x 5 mm x 1.6 mm
. Packages: Top SMD
. Capsulated Resin: Silicone Resin with Silicate Phosphor
. Electrodes: Ag Plating
. Chips: Total 4 chips packed in cavity

RGBW LED STRIP

5050 SMD RGBW LED CHIP 4 IN ONE Images
